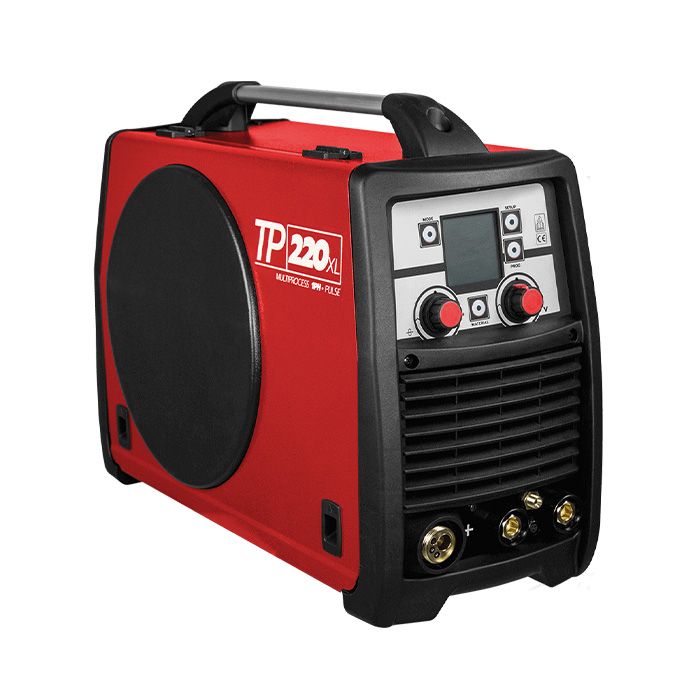

Helvi TP 220XL
Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters.
In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions.
In TIG mode, it controls the LIft Arc function and in MIG mode it allows either manual or fully synergic welding.
Slope-up motor setting and automatic soft start wire feed control of the arc.
All functions can be easily selected on the front panel. The digital LCD display shows the welding voltage and current and all the parameters selected.
TP220XL is compact, lightweight and equipped to accept reels with diameter of 200 mm.
Applications:
Body shops, construction sites and industrial installations.
Features:
- Single-phase Inverter
- MMA/ Lift Arc/ MIG/ TIG
- Pulse setup for MIG and TIG
- Full welding parameter cycle
- ARC Force
- Hot Start
- Anti-stick
- LCD display for welding setting
- Air cooling electronically controlled
- Synergic settings
- Suitable to use with power generators
- 50 mm dinse connector
- Integrated wire feeder
Package Includes:
- TP 220XL power source
- Ground cable
- MIG torch
- Electrode holder
- ALU KIT
- Gas Regulator
- Gas adaptor
- Drive rolls
Input Voltage: (1ph) 230V ± 10% 50/60Hz
Power 60%: 5,5 KVA
Duty Cycle 40°
MMA - 200A 35%, 120A 100%
TIG - 200A 35% ,120A 100%
MIG - 200A 35%, 140A 100%
Output voltage
MMA 65 V | TIG 65 V | MIG 65 V
Current Range
MMA: 5-200A
TIG 5-200A
MIG: 20-200A
Dimensions: 600Lx255Wx480H mm
Weight (Power Source): 27.4kg
Weight (Plant): 30kg
2-years warranty
