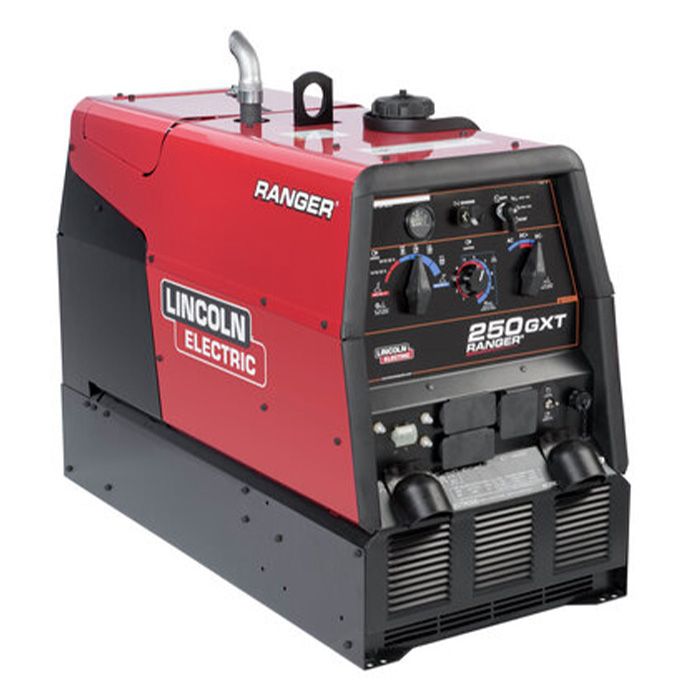

Lincoln Ranger 250GXT Engine Driven Welder
Was:
$13,500.00 (excl.GST)
Price:
$12,825.00 (excl.GST)
The Ranger 250GXT multi-process welder delivers both constant voltage and constant current for applications in Stick and MIG welding including FCAW. AC/DC current allows TIG welding of aluminium and stainless steel (requires optional accessories).
This petrol-driven unit includes 7.2kW auxillary power with two 240V IP66 outlets.
Processes:
Stick, TIG, MIG, Flux-cored and Gouging
Features:
- Totally enclosed case.
- Low Noise – 76.4 dBA sound level at 7m. 100.7 dB sound power (Lwa) at rated output.
- AC/DC welding output for a broad range of stick electrode types.
- Excellent AC TIG welding with optional TIG module for aluminium and other alloy welding.
- MIG and Flux-Cored capable (with optional equipment).
- Remote ready! 6-pin connector and local/remote switch for remote control operation.
- 7,200 watts continuous power for generator, plasma cutter or inverter welder.
- 2 cylinder, 4 cycle overhead valve air-cooled design.
- Electric fuel pump avoids vapour lock.
- Oil drain extension for easy oil changes.
- Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling.
- Welding and AC Generator Outputs Rated at 40ºC.
| Max Rating: | 250A / 25V /100% @ 40°C |
| Single Phase Auxiliary Output: | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency: | 60Hz |
| Output Range by Mode: |
CC-Stick: 50 – 250 Amps CV-Wire: 14 – 28 Volts |
| Engine: | |
| Engine Brand & Model: | Kohler OHV Command CH730 |
| Engine Description: | 2 cylinder, 4 cycle overhead valve air-cooled design |
| High Idle Operating Speed @ Rated Output: | 3600 |
| Fuel Tank Size: | 45L |
| Oil Capacity: | 1.9L |
| Weight: | 273kg |
| Dimensions: | 762 mm x 546 mm x 1073 mm |
