Stock Code:
1-1601-60
Stock Level:
In Stock

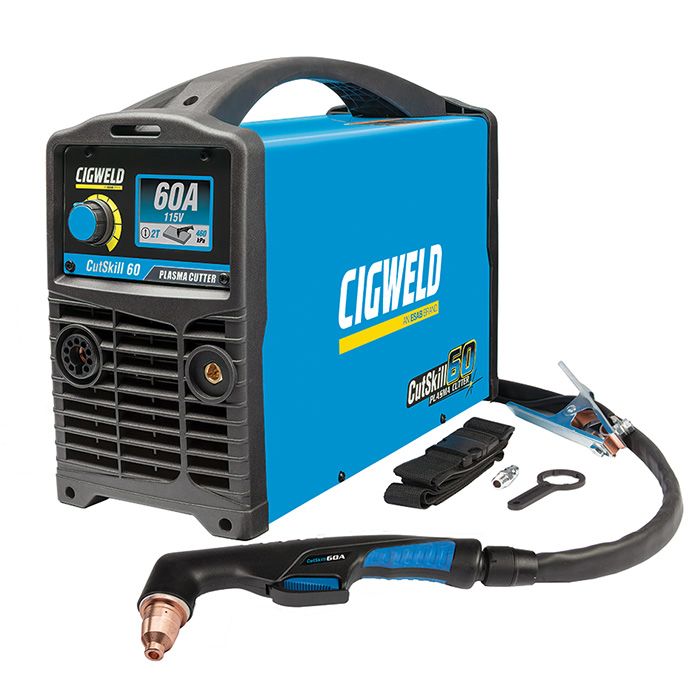

Cigweld CutSkill 60 Plasma Cutter
Price:
$2,450.00 (excl.GST)
Cigweld Cutskill 60A Single Phase Plasma Cutting System
The CutSkill 60 clean cuts through 20mm Mild Steel and has Gouging capability.
Ideal for the workshop for serious cutting of Mild/Stainless Steels and Aluminium, the CutSkill 60 delivers a powerful punch for use with a 15 amp socket.
Features:
- 2.8” LCD screen displays all cutting setting, input voltage and input air pressure
- Single Control Knob adjusts all cutting settings
- Removable air filter with purging valve
- Internal regulator, air through the torch is managed automatically by the plasma unit.
- Comes complete with a detachable 60Amp torch.
- 15 Amp plug.
Package:
- Plasma Power Source – CutSkill 60
- CutSkill 60A Plasma Torch with 1.1mm Cutting / Gouging Tips
- Work Cable and Clamp
- Wrench for Air Filter
- 1 x ¼” Nitto Air Line Connector
- Shoulder Strap
Clean Cut - Mild Steel | 20 mm, Stainless Steel | 14 mm, Aluminium | 12 mm
Severance Cut - 28mm
Gouging
Input Power: 240v, 1ph, 15A
Duty Cycle: 60Amps @ 20%
Current Range: 20 – 60Amps
Input Air Required: 800 kPa, 110 LPM
Generator Required: 15 kva
Supply Plug: 15amp | Minimum recommended circuit breaker is 25A || Upgrade to 4mm2 lead and 20A plug to achieve 30% @ 60A Duty Cycle.
Dimensions: 437mm L X 176mm W X 324mm H
Weight: 13.2kg
