Stock Code:
W1400252
Stock Level:
Out of Stock

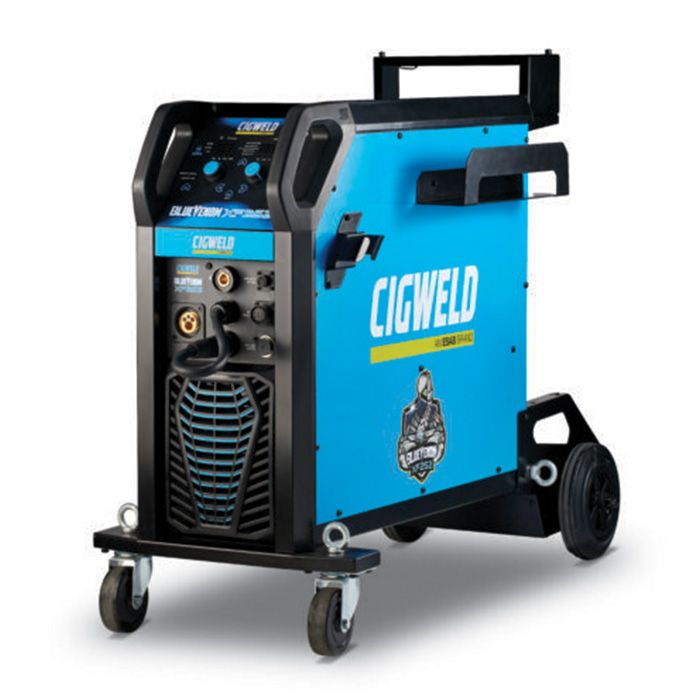

Cigweld BlueVenom XF252
Price:
$2,750.00 (excl.GST)
Cigweld BlueVenom XF252 is a 3-in-1 multiprocess welding inverter.
It has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station.
Processes:
MIG / STICK / TIG DC-Lift, Synergic MIG with Plate Thickness Selection. Pulse Function available with PulseMate pendant (sold separately).
Features:
- 4x Roll Wire Drive system
- 300mm Diameter Spool Capability and includes 200mm spool adapter
- MIG Gun holder and cable management bracket
- Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
- 4-Point Lifting Lugs for safer and convenient maneuverability
- Locking brackets for 4R-Rover to avoid wirefeeder sliding
- MIG Adjustable Wire Burnback
- MIG Crater Fill function in 2T & 4T
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature
- MIG PulseMate™ , Spool Gun & Push-Pull Gun Compatible
- STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
- STICK Hot Start
- STICK Arc Force
- TIG Foot Control Compatible
- TIG Dial Remote Torch Compatible
Extras Sold Separately:
- 4R-Rover remote wirefeed system – a plug n’ play, 4 Roll wire drive unit that you can setup where you need it. (CODE: W14)
- PulseMate™ pendant for a single and double pulse work. (CODE: W4200PM1)
- Push-Pull or Spool Gun for more precise control. (CODE: W52BP36E8 & W52BS24E6)
Package Contents:
- BlueVenom™ XF252 Power Source
- MIG Gun BZ36 “Style”, 4m, Euro
- Work Clamp 3OOA with 4m Lead
- Twistlock Electrode Holder 4OOA with 4m Lead
- Feed Rolls: 0.9/1.2mm V Groove (fitted), 1.0/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
- Gas Regulator/Flowmeter
- Quick Connect Gas Hose 3m
Processes: MIG, STICK, LIFT TIG
Fan Cooled
Supply Voltage: 230/240 VAC ± 15% | Single Phase
Supply Frequency: 50/60 Hz
Plug Rating: 15A Plug (can be upgraded to 25A Plug)
MIG (GMAW/FCAW)
220A @ 20%, 25.0V
127A @ 60%, 20.4V
98A @ 100%, 18.9V
30-220A
STICK (MMAW)
205A @ 20%, 28.2V
118A @ 60%, 24.7V
92A @ 100%, 23.7V
20-205A
TIG (GTAW)
250A @ 20%, 20.0V
144A @ 60%, 15.8V
112A @ 100%, 14.5
20-250A
Warranty: 3- Year Conditional Warranty
