Stock Code:
W1500135
Stock Level:
Out of Stock
Cigweld BlueVenom SV135
Price:
$295.00 (excl.GST)
The BlueVenom SV135 is a Multiprocess Welding Inverter designed for STICK and TIG (DC-LIFT-TIG) with Pulse Function and just 14cm hight.
This little machine (Size: 255mm L x 105mm W x 142mm H) weighs in at only 2.7kg and is one of the lightest on the market, providing true portability for effortless maneuverability, perfect for site work.
Processes:
- Stick (MMAW) & Stick-Pulse
- TIG (DC Lift TIG)
- LIFT-TIG-Pulse
Features:
- The lightest on the market (just 2.7 kg).
- Perfect machine for filling gaps and vertical-up welding due to Stick-Pulse Function.
- The slow TIG Pulse settings makes it easy for welding root runs in carbon steel pipe or other butt-welds.
- The Fast TIG Pulse frequency is great for welding thin gauge stainless and mild steels.
- Voltage Reduction Device (VRD) built-in.

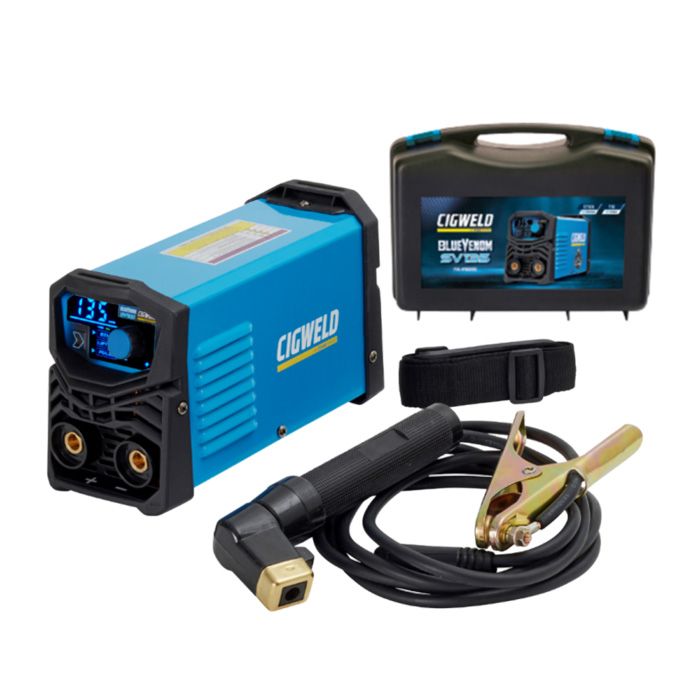

Package Includes:
- BlueVENOM SV135 Power Source
- 200A Work Clamp with 1.5m Lead
- Twistlock Electrode Holder with 1.5m lead
- Plastic Carry Case
- Carry Strap
Power Supply (Voltage): Single-Phase 230V/240V +/- 10%
Supply Frequency: 50/60Hz
Supply Lead and Plug supplied: 10 Amp
Amperage Range (MIG): 10 - 135A
Voltage Range (MIG): 10.5 - 23.5.V
STICK (MMAW) Duty Cycle @ 40°C: 135 Amps @ 10% | 55 Amps @ 60% | 43 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C: 135 Amps @ 10% | 55 Amps @ 60% | 43 Amps @ 100%
Warranty: 2- Year Conditional Warranty
Weight of Power Source: 2.7kg
Power Source Dimensions (mm): L: 255 x W: 105 x H: 142
