Stock Code:
W1400353
Stock Level:
Out of Stock

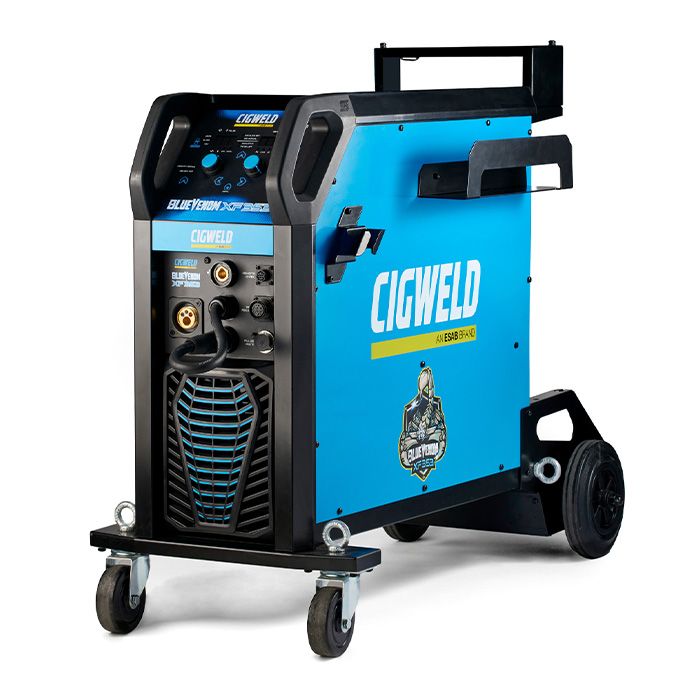

Cigweld BlueVenom XF353
Price:
$4,250.00 (excl.GST)
Cigweld BlueVenom XF353 is a 3-in-1 multiprocess welding inverter
It has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station.
Processes: MIG / STICK / TIG DC-Lift, Synergic MIG with Plate Thickness Selection. Pulse Function available with PulseMate pendant (sold separately).
Features:
- 4x Roll Wire Drive system
- 300mm Diameter Spool Capability and includes 200mm spool adapter
- MIG Gun holder and cable management bracket
- Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
- 4-Point Lifting Lugs for safer and convenient maneuverability
- Locking brackets for 4R-Rover to avoid wirefeeder sliding
- MIG Adjustable Wire Burnback
- MIG Crater Fill function in 2T & 4T
- MIG Side door wire installation, side loader
- MIG Anti de-spooling safety feature
- MIG PulseMate™ , Spool Gun & Push-Pull Gun Compatible
- STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
- STICK Hot Start
- STICK Arc Force
- TIG Foot Control Compatible
- TIG Dial Remote Torch Compatible
Extras Sold Separately:
- 4R-Rover remote wirefeed system – a plug n’ play, 4 Roll wire drive unit that you can setup where you need it. (CODE: W14)
- PulseMate™ pendant for a single and double pulse work. (CODE: W4200PM1)
- Push-Pull or Spool Gun for more precise control. (CODE: W52BP36E8 & W52BS24E6)
Package Contents:
- BlueVenom™ XF353 Power Source
- MIG Gun BZ36 “Style”, 4m, Euro
- Work Clamp 3OOA with 4m Lead
- Twistlock Electrode Holder 4OOA with 4m Lead
- Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
- Gas Regulator/Flowmeter
- Quick Connect Gas Hose 3m
Processes: MIG, STICK, LIFT TIG
Fan Cooled
MIG (GMAW/FCAW)
350A @ 40%, 31.5V | 285A @ 60%
28.3V | 221A @ 100%, 25.1V
30-350A
STICK (MMAW)
300A @ 40%, 32.0V | 245A @ 60%,
29.8V | 190A @ 100%, 27.6V
20-300A
TIG (GTAW)
350A @ 40%, 24.0V | 285A @ 60%,
21.4V | 221A @ 100%, 18.9V
20-350A
Supply Voltage: 400 VAC ± 15% | Three Phase
Supply Frequency: 50/60 Hz
Warranty: 3- Year Conditional Warranty
