Stock Code:
601.0071.1
Stock Level:
In Stock

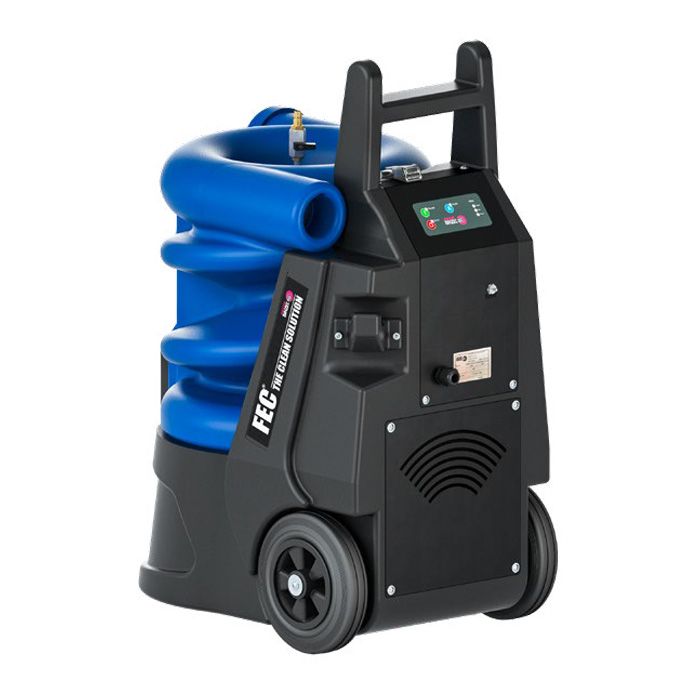

Binzel Fume Extraction System FEC. 230V
Price:
$5,750.00 (excl.GST)
Binzel Weld Fume Extraction Cyclone (FEC) System
Cyclone Technology directs the extracted air into the filter container in an optimised circular flow. This motion forces particles in the air against the container wall using centrifugal force, separating them before they reach the filter. The particles are collected in the FEC's dust drawer, reducing the need for frequent filter cleaning. As a result, the filter maintains its efficiency for longer periods with less maintenance required.
Features:
- Cyclone technology for pre-separating particles, protecting the filter surface and extending cleaning intervals.
- Integrated filter cleaning system allows for quick and easy maintenance of the permanent filter.
- Contamination-free disposal of welding dust through an encapsulated de-dusting system and bag.
- Lightweight at 25 kg, with smooth-running full-cushion wheels for versatile use at various sites.
- Durable and quiet operation thanks to a thick-walled plastic casing.
- Integrated automatic start-stop system reduces operational costs and wear.
- Optional start-stop-measuring caliper available.
Max. air flow: 230 m3/h
Connection diameter: 60 mm
Max. vacuum: 19,000 Pa
Voltage: 115 V, 50 / 60 Hz | 230 V, 50 Hz
Engine performance: 1.1 kW
Filter:Permanent filter dust class M, 0.8 m²
Noise level: 76 dB (A)
Weight: 25 kg
Dimensions (LxWxH): 590 x 425 x 825 mm
