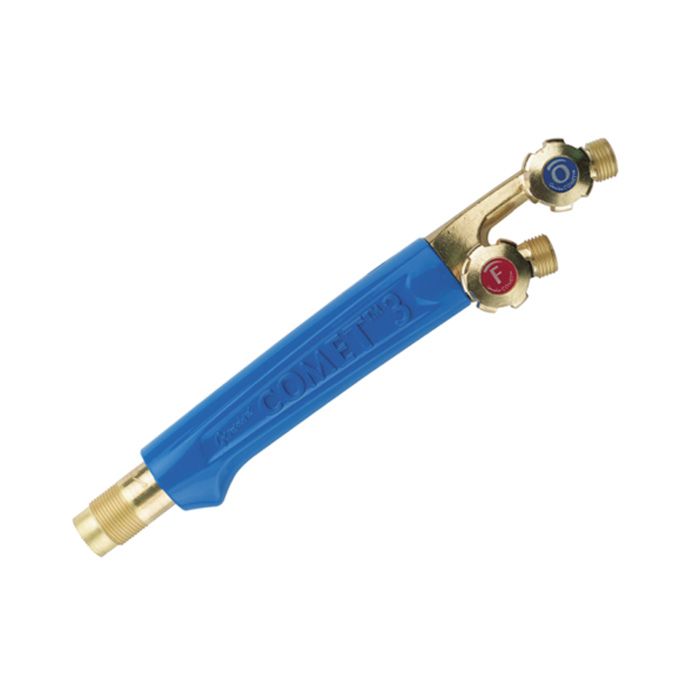

COMET 3 Blowpipe
The COMET 3 blowpipe, when used with appropriate attachments, is suitable for fusion welding, braze welding, brazing, soldering, heating, hand cutting, sheet metal cutting, rivet cutting, powder facing and flame cleaning.
Features:
Two-stage valve gives precise gas control from the smallest welding tip to the largest heating tip
Permits fine sensitive control for delicate welding jobs and easy lighting up, to flows of up to 600 l/min for the heaviest heating job
A non-rotating valve spindle drastically minimises wear
Due to O-ring seals, only hand tightening is required to connect the mixer or cutting attachment to the handle
Locking teeth secure re-positioning with hand tightening
Handle shape gives a comfortable positive grip
Left-hand/right-hand threads prevent incorrect hose connection
Colour coded control knobs are fitted for maximum safety and ease of operation, even when wearing gloves
Specifications:
Gas Consumption (Fuel): 41-55 l/min
Gas Consumption (Oxy): 45-58 l/min
Heat Output: 180 MJ/HR
Mixer: 304003
Model Number: SHA1
Operating Pressure (Fuel): 100 kPa
Operating Pressure (Oxy): 150 kPa
Tip Size: 8x12
