Stock Code:
251.4301.1
Stock Level:
In Stock

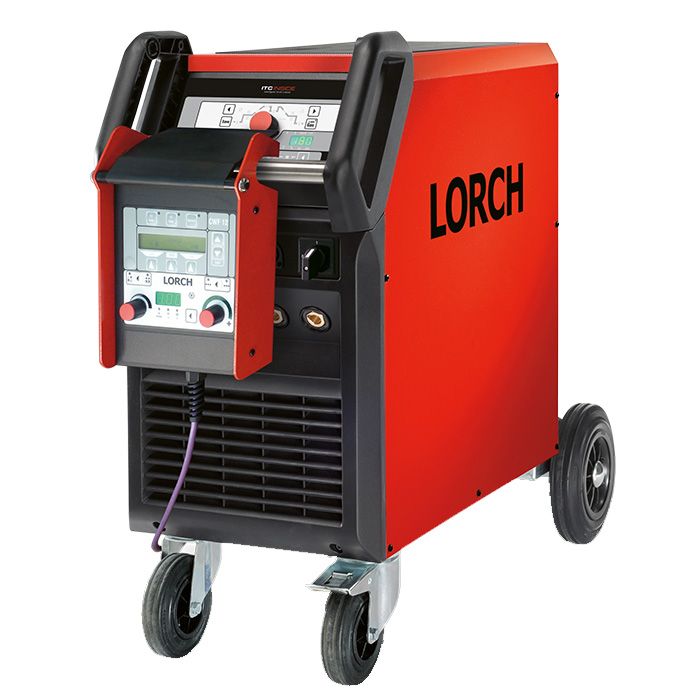

Lorch TF-Pro 300 DC Water-Cooled
Price:
$12,995.00 (excl.GST)
Lorch T-Pro 250
The industrial grade TF-Pro Series 415V input and is available in 300 Amp DC configurations.
TF-Pro system incorporates a fully integrated cold wire feed system, feeding wire into the weld pool from a MIG wire spool, to drive productivity. Fully featured for professional use with a full line of accessories available to create optimised end-user solutions
Configuration:
- Water-Cooled
- DC System
- ControlPro Panel
- Output range: up to 300A
Features:
- Unrivalled TIG welding characteristics thanks to inverter technology. Inverter utilises digital software control technology that has a significant influence on the outcome of the welding process.
- Pulse and fast pulse up to 2kHz. The pulse function with up to 2kHz offers you additional benefits when welding thin plates.
- With integrated water cooling. A water cooling system that is housed in a compact mobile case, making it perfectly suited for use at workshops on site.
- The wire feeder integrated. A 4-roll feed motor with a specially tuned gearbox combination is in charge of guiding the wire along. The cold wire feed is controlled using the removable operating panel.
- Remote control. Remote control allows easily to intervene and adjust the welding current if necessary. This is why Lorch offers a large variety of different hand and foot remote controls that are ready for use right away thanks to their plug & play support.
- Low energy consumption. Thermal control sensors monitor the temperature of the machine and regulate the speed of the fan accordingly. This smart technology reduces fan noise and dust levels in the machine compartment and helps conserve energy.
- Interval-spot function (reduces distortion during thin sheet metal welding).
- Non-contacting HF ignition. Putting an end to welds with tungsten inclusions, this technology reduces the strain on the electrode. When working in HF-sensitive environments or on tools, the operator has the additional option of switching to ContacTIG (contact ignition).
- Intelligent Torch Control. Automatically detecting whether the welder uses a standard torch or one of the latest, fully digital Lorch i- Torches including Powermaster remote control.
- Custom end-user solution.
Welding range TIG: 5 - 300A
Welding range Electrode: 10- 200A
Weldable Electrodes 1.5 - 5.0mm
TIG Duty cycle DC: 230A - 100% / 270A - 60%
Duty Cycle @ max current DC: 45%
Mains voltage 3 ~ 400V
Dimensions: 880L × 400W × 755H mm
Weight: 67kg
