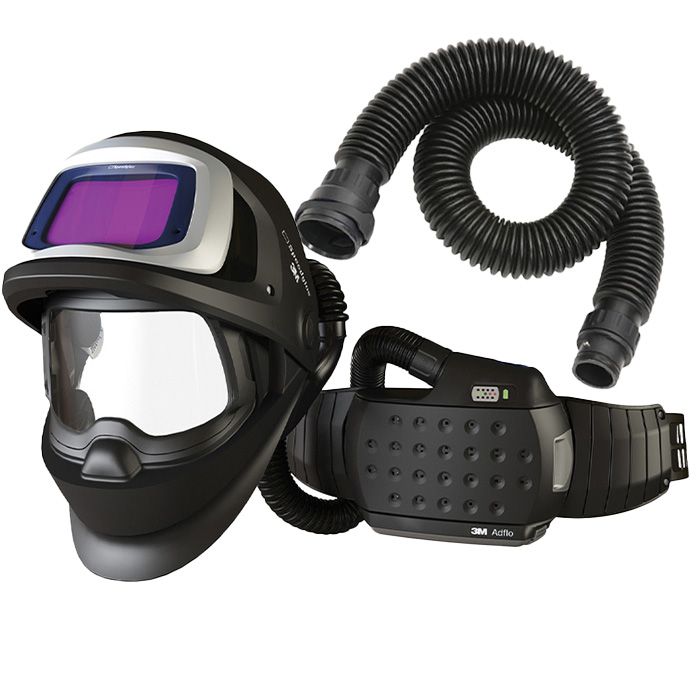

3M Speedglas 9100XXi FX Air. Adflo (HD) & HD Tube
3M Speedglas 9100XXi FX Air. HD Battery and HD Rubber Hose (#834017)
Features:
• Professional flip-up welding helmet with extra-large viewing area.
• Auto-On Largest viewing area on the market. Shade 5 windows enhance your peripheral vision and widen your overall field of view.
• Clear grinding visor with 180 degree vision and SideWindows.
• Speedglas True-View Technology for superior colour recognition and contrast .
• Heat reflecting silver front with an external button for grind and welding memory settings: Weld, Cut, Grind, Hidden Arc, Outdoor, Passive and Tack.
• Lens reacts down to an industry-leading 1 amp and has the highest optical classification (1/1/1).
• Advanced TST (TIG Sensor Technology) down to industry leading 1 amp. Centre photo-sensor for TIG.
• High comfort head harness with two crown straps for optimum balance.
• Increased coverage for ears and neck.
• Built-in holder for magnifying lenses.
• Compliant with AS/NZS1337.1 for high impact eye and face protection, AS/NZS1716 for Respiratory Protection.
• The Standard Plastic Breathing Tube from 9100XXi FX Air(HD) replaced by Heavy duty rubber QRS breathing tube (part number 834017)
3M ADFLO Powered Air Respirator
- Adflo PAPR supplies 50 times cleaner air (RMPF = 50)
- The exclusive airflow pattern evenly distributes filtered air throughout the entire breathing zone of the welder.
- The Quick Release Swivel (QRS) allows for one handed connection and release. The self-adjusting length means the hose is always kept close to the welder to prevent snagging on surrounding objects.
- Slim welding respirator profile & super light perfect for use in tight spaces.
Shades:
Shades 5, 8-13 with a light shade of 3
Viewing Area:
Large 73 x 107mm viewing area +SideWindows
Lenses:
526000 Outside Cover Lens
528025 Inner Cover Lens
Package Includes:
- Helmet with auto-darkening lens
- Respirator (Adflo PAPR ether Adflo PARP HD or V-500E)
- Magnifying lens holder
- Quick-Release breathing tube for easy connection
- Heat-reflecting silver front
- Premium carry bag and 2 free outside cover lenses
❌ Variable Colour Technology
✔️ Stick Welding
✔️ MIG Welding
✔️ TIG Welding
✔️ Grinding Feature: External One-Touch Grind
✔️ Plasma Welding & Cutting
✔️ Tack Welding
✔️ Memory Mode (Set-and-Forget)
✔️ SideWindow Peripheral Vision
✔️ Hidden Arc Mode
❌ Blue-Tooth Enabled
❌ Optional Task Light
❌ Comfort Exhaust Vents: positive pressure seal for powered air
❌ Adjustable Air Control
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 40-800 ms
Air flow Level: 170 & 200 l/min
Adflo Battery Run Time: 12 hours
Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
