Speedglas G5-01. Welding Helmet. Adflo Respirator (HD)

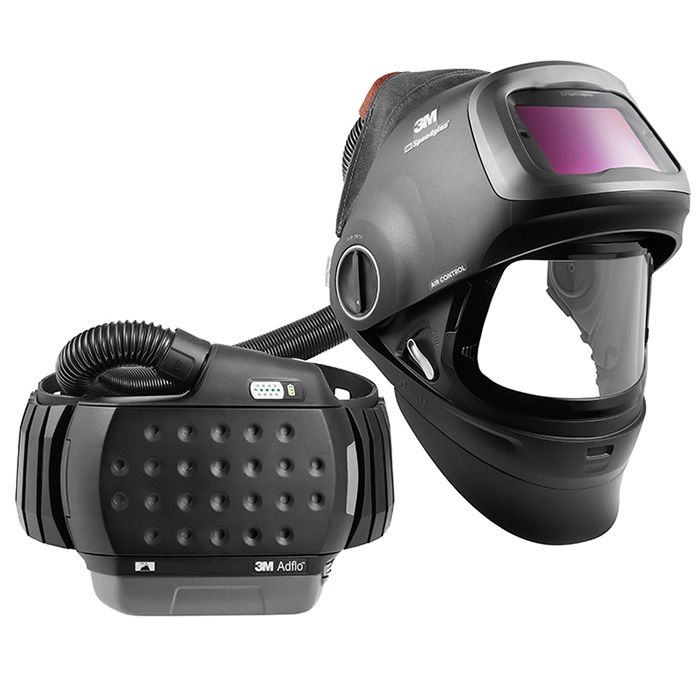

3M Speedglas G5-01 Flip-Up Welding Helmet. Heavy Duty Adflo PAPR
The Speedglas G5-01 marks the 5th generation of Speedglas welding helmets, introducing the latest in welding lens technology combined with flip-front functionality for grinding.
Features:
• Heavy duty flip-up welding helmet with 15% larger grinding visor.
• Variable Dark State Colours to choose between natural (A), cool (B) or warm (C) tones for your dark state.
• Speedglas True-View Technology for superior colour recognition and contrast.
• Auto-darkening lens features an extra-dark shade of 14 for high amperage welding.
• Helmet air duct system for climate control.
• Bluetooth connectivity, allowing you to change lens settings, review welding statistics and access user manuals – all from the palm of your hand.
• Optional helmet-mounted task light.
• Heat reflecting silver front with an external button for grind and welding memory settings: Weld, Cut, Grind, Hidden Arc, Outdoor, Passive and Tack.
• Lens reacts down to an industry-leading 1 amp and has the highest optical classification (1/1/1).
• Advanced TST (TIG Sensor Technology) down to industry leading 1 amp. Centre photo-sensor for TIG.
• High comfort head harness avoids sensitive areas and allows for complete customisation to your head. An extra-large back pad offers enhanced comfort.
• Increased coverage for ears and neck.
• Built-in holder for magnifying lenses.
• Super comfortable welding face seal follows the contours of both the helmet and the face to provide a positive pressure seal from pollutants.
• Adflo PAPR supplies 50 times cleaner air (RMPF = 50)
• The exclusive airflow pattern evenly distributes filtered air throughout the entire breathing zone of the welder.< br />• The Quick Release Swivel (QRS) allows for one handed connection and release. The self-adjusting length means the hose is always kept close to the welder to prevent snagging on surrounding objects.
• Slim welding respirator profile & super light perfect for use in tight spaces.
• Compliant with AS/NZS1337.1 for high impact eye and face protection, AS/NZS1716 for Respiratory Protection.
Shades:
Shades 5, 8-14 with a light shade of 3
Viewing Area:
Large 73 x 109mm viewing area
Lenses:
526000 Outside Cover Lens
528025 Inner Cover Lens
Package Includes:
1. Helmet with auto-darkening lens
2. Respirator (Adflo PAPR HD)
3. Extra-large head harness cushion for added comfort
4. Quick-Release breathing tube for easy connection
5. Heavy-duty fabric head protection
6. Premium heavy-duty welding carry bag
✔️Speedglas TrueView Welding Lens
✔️Variable Colour Technology
✔️Stick Welding
✔️MIG Welding
✔️TIG Welding
✔️Grinding Feature: Large Clear Grinding Visor 170 x 104mm (Flip-Up)
✔️Plasma Welding & Cutting
✔️Tack Welding
✔️Memory Mode (Set-and-Forget)
❌SideWindow Peripheral Vision
✔️Hidden Arc Mode
✔️Blue-Tooth Enabled
✔️Optional Task Light
❌Comfort Exhaust Vents: positive pressure seal for powered air
✔️Adjustable Air Control
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 50-1300 ms
Air flow Level: 170 & 200 l/min
Adflo Battery Run Time: 12 hours
Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete
