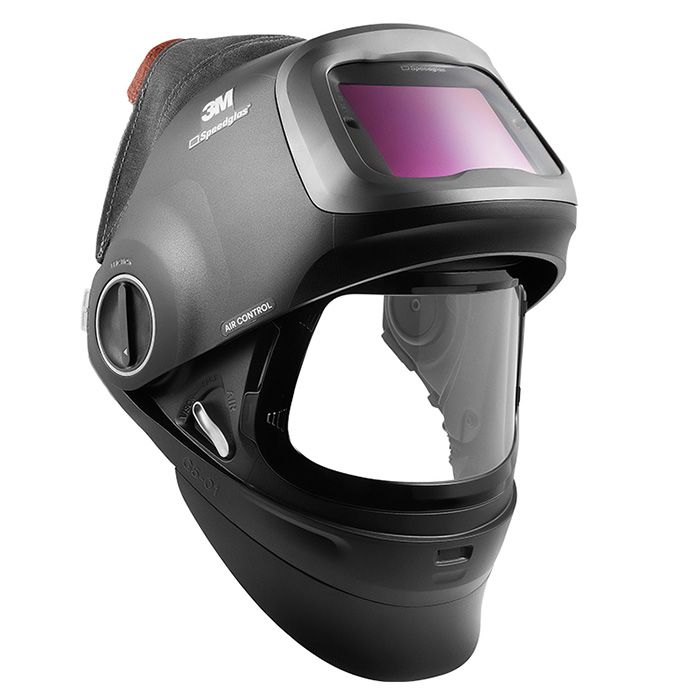

Speedglas G5-01 Upgrade Kit (helmet and lens only)
3M Speedglas G5-01 Upgrade Kit
The Speedglas G5-01 marks the 5th generation of Speedglas welding helmets, introducing the latest in welding lens technology combined with flip-front functionality for grinding.
As an existing 3M Adflo PAPR customer, the most economical way to upgrade to the new 3M Speedglas G5-01 Welding Helmet is by simply upgrading your head-top.
G5-01 Features:
• Heavy duty flip-up welding helmet with 15% larger grinding visor.
• Variable Dark State Colours to choose between natural (A), cool (B) or warm (C) tones for your dark state.
• Speedglas True-View Technology for superior colour recognition and contrast.
• Auto-darkening lens features an extra-dark shade of 14 for high amperage welding.
• Helmet air duct system for climate control.
• Bluetooth connectivity, allowing you to change lens settings, review welding statistics and access user manuals – all from the palm of your hand.
• Optional helmet-mounted task light.
• Heat reflecting silver front with an external button for grind and welding memory settings: Weld, Cut, Grind, Hidden Arc, Outdoor, Passive and Tack.
• Lens reacts down to an industry-leading 1 amp and has the highest optical classification (1/1/1).
• Advanced TST (TIG Sensor Technology) down to industry leading 1 amp. Centre photo-sensor for TIG.
• High comfort head harness avoids sensitive areas and allows for complete customisation to your head. An extra-large back pad offers enhanced comfort.
• Increased coverage for ears and neck.
• Built-in holder for magnifying lenses.
• Super comfortable welding face seal follows the contours of both the helmet and the face to provide a positive pressure seal from pollutants.
Shades:
Shades 5, 8-14 with a light shade of 3
Viewing Area:
Large 73 x 109mm viewing area
Kit includes:
Speedglas G5-01 Welding Helmet
3M Speedglas Welding Lens G5-01
Lenses:
526000 Outside Cover Lens
528025 Inner Cover Lens
✔️Speedglas TrueView Welding Lens
✔️Variable Colour Technology
✔️Stick Welding
✔️MIG Welding
✔️TIG Welding
✔️Grinding Feature: Large Clear Grinding Visor 170 x 104mm (Flip-Up)
✔️Plasma Welding & Cutting
✔️Tack Welding
✔️Memory Mode (Set-and-Forget)
❌SideWindow Peripheral Vision
✔️Hidden Arc Mode
✔️Blue-Tooth Enabled
✔️Optional Task Light
❌Comfort Exhaust Vents: positive pressure seal for powered air
✔️Adjustable Air Control
Switching time, light-dark: 0.1 ms (+23 C)
Delay (switching time, dark-light): 50-1300 ms
