Stock Code:
116.3510.1
Stock Level:
In Stock

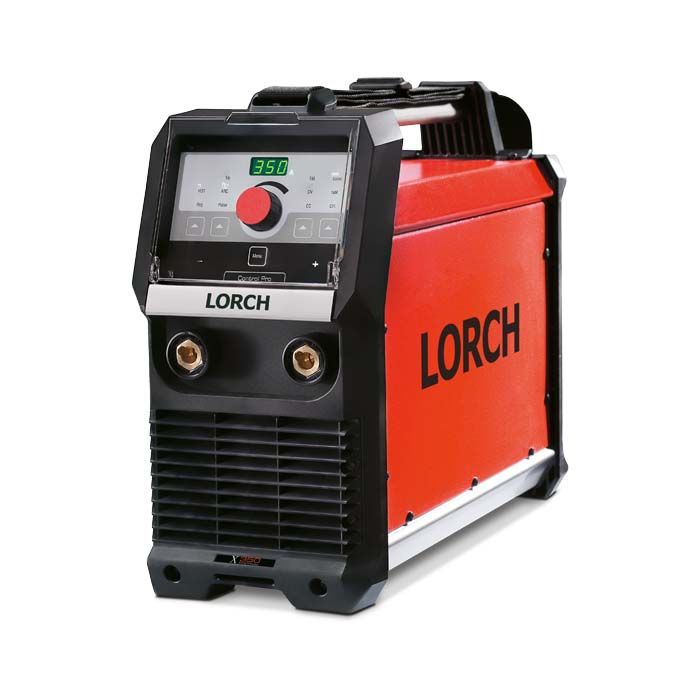

Lorch X350. ControlPro VRD

Price:
$5,995.00 (excl.GST)

Lorch X350 - light-weight high-performance champion

The X 350 is extremely stable in spite of its low weight.

Configuration:

  1. ControlPRO Operation System
  2. VRD Configuration
  3. Output range: up to 350A

Features:

  • Enhanced performance. Fully resonant welding inverter.
  • Designed for extreme applications. IP34 outside rating, low weight, compact external dimensions and protection against falls from a height of up to 60cm.
  • Multi-talented. Perfect choice when you need to weld with basic, rutile and special electrodes that have a diameter of up to 8mm or need a tool that can handle vertical down-welding operations with cellulose electrodes (CEL). What is more, ContacTIG allows you to perform TIG welding operations using direct current. CV selection allows for use with MIG/FCAW case wire feeders.
  • Dependable. When using MicorBoost technology, you can rest assured that your machine will deliver perfect arc starting and produce a smooth, stable arc even when operated on long mains cables with a length of up to 200 metres, or hooked up to a generator.
  • Gouging.
  • Mobile.
  • Remote control. Can also be controlled using an optional hand or foot remote control.
  • Customisable.

Advanced Features:

  • CC and CV curve for MIG-MAG welding. The Lorch X 350 can also be used with semi-automatic MIG-MAG wire feeder cases.
  • Hotstart.
  • Anti-Stick System.
  • Arc-Force regulation.

Operation System:

  • CEL-capable electrode welding inverter
  • Special vertical seam and pulse welding
  • Pulse function
  • Used with semi-automatic MIG-MAG wire feeder cases
  • Electrode pre-selection
  • TIG-DC welding function
  • Hotstart
  • Voltage Reduction (VRD Configuration)

Sold as solo machines with main cable, main plug and carry strap.


Team Up with ESAB RobustFeed for Unmatched Performance!

Lear more

Welding process: MIG-MAG | Electrode | TIG
Welding range: 10-350A

Duty cycle 40°C:
Electrode: 230A-100% | 280A-60%
TIG: 250A-100% | 300A-60%

Mains voltage: 3~400V

Weight: 18.6 kg
Dimensions: 515L × 185W × 400H

Warranty: 3 Years Commercial Warranty
