1000A AC/DC True RMS Clamp Meter (Calibrated)
Alpratek TEK837 is a professional True RMS clamp meter that provides accurate AC, AC/DC Current, and Voltage readings regardless of waveforms. These meters can be used in most industrial and commercial applications where non-linear loads distort the Current or Voltage waveform.
Features:
- True RMS measurement of AC Current and AC Voltage
- Large 4000 count LCD display with a bar graph and a bright white LED backlight.
- Wide measuring range from 0.01A AC/DC up to 1000A AC/DC
- Measures resistance from 0.01? up to 40M?
- Measures AC and DC Voltage up to 600 volts
- Capacitance measurements up to 40mF
- Temperature measurement from -40ºC to 1000ºC and -40ºF to 1832ºF
- Designed to the international safety standard IEC61010 CAT III 600V/ CAT II 1000V, Pollution degree 2
- Auto Power Off after approximately 20 minutes to conserve battery life
- Continuity buzzer and diode test
- Frequency measurement up to 4kHz
- Peak Hold to record the minimum and maximum readings for current and voltage
- Data Hold switch used to freeze reading on the display

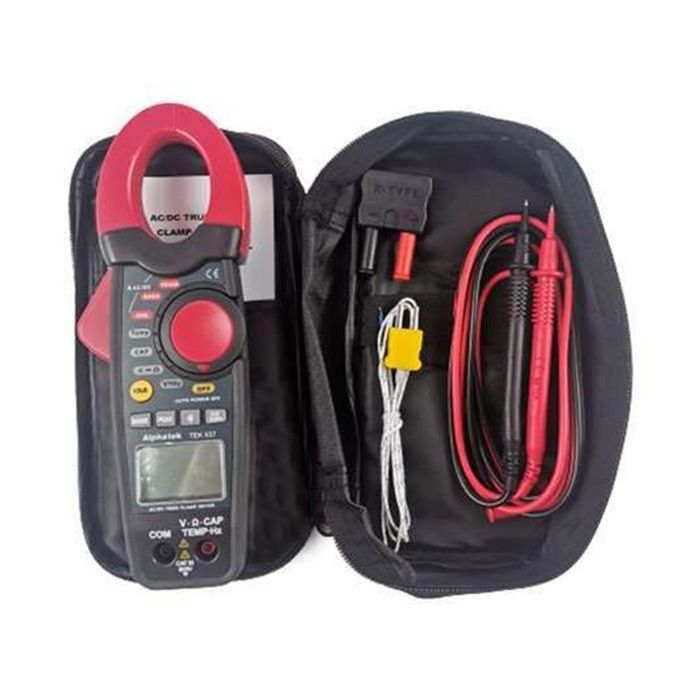

Package Includes:
1. Alphatek TEK837 True RMS Clamp Meter
2. Test Leads
3. Temperature Probe
4. 9V Battery
5. Carry Case
Specifications:
Clamp size: 30mm Opening Approx.
Diode test: Test current of 0.3mA typical, Open circuit voltage 1.5VDC
Continuity check: Threshold <35O; Test current <1mA
Input Impedance: 10MO (VDC and VAC)
Display: 4000 count LCD
Overvoltage category: Category III 600V
Battery: 9V
Auto Power Off: Approx. 20 mins
Dimensions: 229 x 80 x 49mm
Weight: 303g
