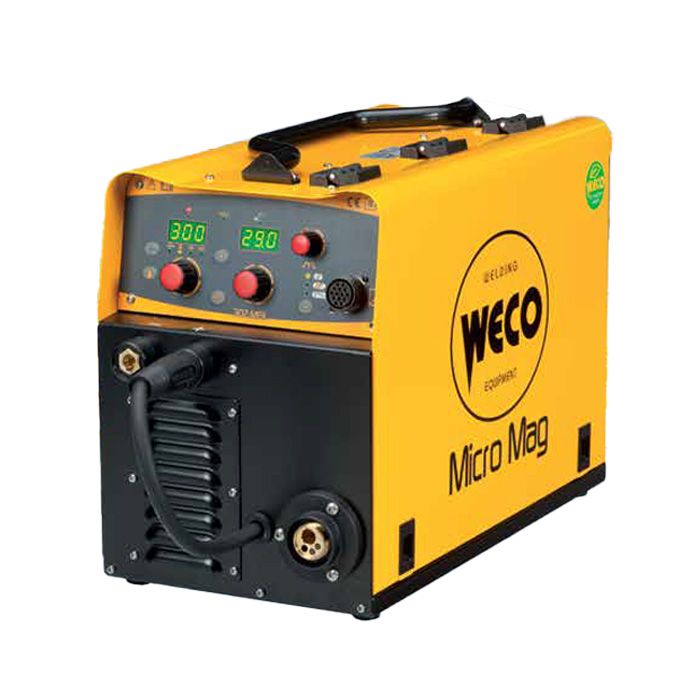

WECO MicroMAG 302MFK
MicroMAG 302MFK is a compact, synergic, 3 Phase and robust designed Inverter for MIG-MAG, MMA and Lift TIG Arc welding
Easy to transport, only 22kg , it is the best option for maintenance and repair on field, shipyard and off-shore operations. Polarity change allows welding with self shielded wires.
Innovative WECO unique HAC (Hybrid Arc Control) supplies a soft and very stable MIG-MAG arc with excellent weld bead quality and minimal spattering in any working conditions.
3T Mode allows both Hot Start and Crater Filler current setting, for optimal penetration at start and crater filling at bead’s end.
Additional parameters, Motor Slope, Soft Start, Burn Back and Post Gas are included for perfect arc ignition and optimum wire cutting at the end of welding.
Microprocessor, inverter technology, digital displays, synergic curves and memory locations for customized welding parameters assure complete welding process repeatability.
Inductance is electronically adjustable from the front panel and optimizes the arc.
A perfect wire feeding is guaranteed thanks to a 4-rolls motor drive included in MicroMAG 302MFK.
Features:
- Up to 5mm electrodes in MMA
- 35 synergic programs
- Customized welding parameters
- Adjustable Arc Force and Hot Start in MMA welding
- Lift TIG ignition to reduce Tungsten inclusions.
- Fan on demand and Built-in Wind Tunnel protects electronic devices from dust and saltiness and improves reliability
- Push-Pull torch applicable for MIG aluminum welding
- 15kg spool 300mm diameter
- Remote Controlled by MIG-torch( UP-DOWN) and RC unit
- Welding operations can be replicated in time
- Integrated phases control
MicroMag 302MFK introduce new technological solutions in order to reduce the harmonic current emissions according to the future International Standards, to increase even more the power inverter efficiency and to reduce the input current more than 20%.
Voltage 3 x 400Vac ±15% @ 50-60Hz
Welding Current 16A
Duty Cycle 40°
MIG-MAG 35% 300A, 60% 230A, 100% 200A
TIG 50% 250A, 60% 240A, 100% 210A
MMA 40% 250A, 60% 220A, 100% 190A
Output voltage 53V
Current Range
MIG-MAG 5A - 300A
TIG 5A - 250A
MMA 5A - 250A
Dimensions: 560 x 280 x 390mm
Weight: 22kg
Warranty: 2 Years Commercial Warranty
