Stock Code:
PT-502
Stock Level:
Out of Stock

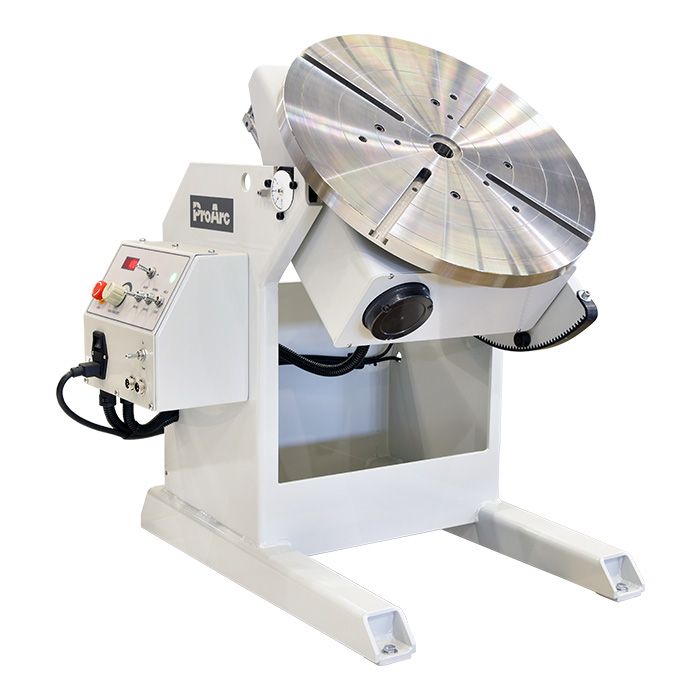

ProArc Positioner/Rotator 500kg. Motor drive
Price Enquiry
An automatic positioner, working in MIG/MAG, CO2 and TIG welding processes.
It has Digital Display and P.C.Board
Features:
- Allow steel fabrication shops operator to position the jobs for 'downhand' position in the shortest possible time, without the use of cranes and manpower.
- 360° degree rotation, 135° degree tilts.
- High frequency protected.
- Machined "T" slots table with pilot and through hole.
- Free maintenance grounding system.
- Standard forward/reverse rotation and variable speed control.
- AD type adjustable table height option available.
- Tilt mode: Motor drive.
Available Extras:
- Chuck
- Variable speed foot-switch
- Advanced ServoArc controller (See Servo Spec sheet)
Power Input: 1 Phase, AC 100 ~ 240V, 50/60Hz
Capacity, kg: 500
Rated center of gravity, mm: 100
Rated eccentricity, mm: 100
Table dimension (E), mm: Ø450
Table slot bolt size: M12
Rotation Speed, rpm: 0.12 ~ 2
Spindle thru hole, mm: Ø26
Earthing, Amp: 300 @ 100%
Tilt range, deg: 0 ~ 135
Overall length (A), mm: 750
Overall width (B), mm: 650
Overall height (C), mm: 620
Center to floor (D), mm: 540
Weight, kg: 135kg
