Stock Code:
PT-502M
Stock Level:
In Stock

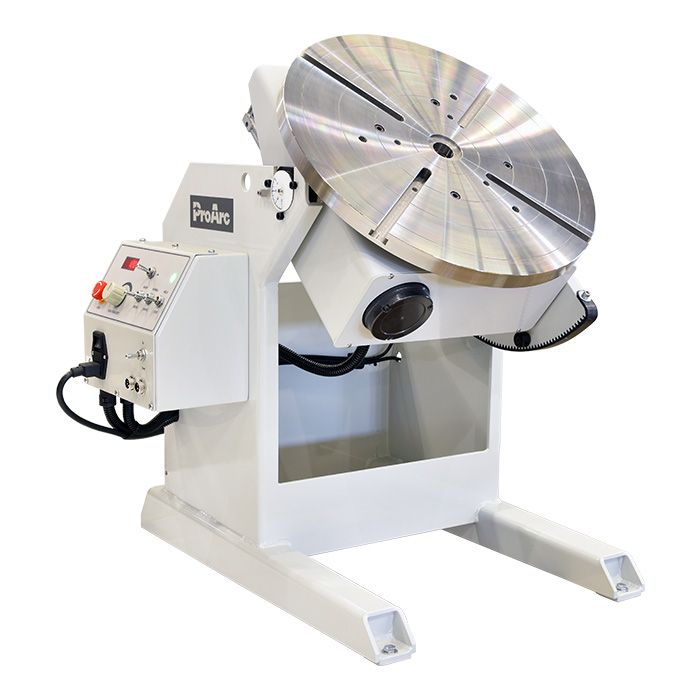

ProArc Positioner/Rotator 500kg. Manual Tilt Model
Price:
$11,500.00 (excl.GST)
An automatic positioner, working in MIG/MAG, CO2 and TIG welding processes.
It has Digital Display and P.C.Board
Features:
- Allow steel fabrication shops operator to position the jobs for 'downhand' position in the shortest possible time, without the use of cranes and manpower.
- 360° degree rotation, 135° degree tilts.
- High frequency protected.
- Machined "T" slots table with pilot and through hole.
- Free maintenance grounding system.
- Standard forward/reverse rotation and variable speed control.
- AD type adjustable table height option available.
- Tilt mode: Manual.
Available Extras:
- Chuck
- Variable speed foot-switch
- Advanced ServoArc controller (See Servo Spec sheet)
Power input 100-230v, 50hz
Rated capacity - 500kg
Rotation speed - 0.12-2rpm
Tilt angle - 0-135º
Tilt mode - Manual
Dimension - 750x650x620mm
Table dimension - 450mm
Weight - 135kg
Earthing Amp 400Amp
Includes input lead
