Cigweld BlueVenom XF200P3 Pulse

Price:
$1,848.86 (excl.GST)
Add to Favourites
Make an Enquiry

Cigweld BlueVenom XF200P3

Sinergic 3-in-1 Welding Inverter with MIG Plate Thickness Selection.
with 3 Pulse Transfer Modes.

The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process.

Processes:

  • MIG (QuickSet and Manual, Gas & Gasless)
  • MIG-Pulse (Single & Double)
  • Stick (MMAW) & Stick-Pulse
  • TIG (DC Lift TIG)
  • TIG-DC-Pulse

Recommended MIG & TIG welding thickness range 0.6mm - 12mm
Recommended STICK welding thickness range 1.6mm - 16mm


The BlueVenom XF200P3 comes with an integrated wire feeder that suitable for a 100mm & 200mm spool. It comes packed with the right liner, inlet guide and feed rollers for hard (steel and stainless) wires as well.

Professional Features to ensure optimal welding results:

  • You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
  • 3 x Pulse modes: Single & Double Pulse MIG, STICK Pulse and TIG Pulse.
  • Aluminium Pulse MIG Welding delivers excellent thin metal welding results that can be customised to allow adjustable ''ripple spacing'' (dimes) to achieve MIG-Welds that look like TIG-Welds!
  • Pre-installed Synergic Quickset MIG (Single & Double Pulse) programs! Simply choose your material and gas combination (unless are using gasless), wire diameter and dial up the plate thickness you are welding and you are ready to go.
  • Fine tuning of Pre-Set Wire Speed & Volts / Full control over manual settings.
  • Opti-Start, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
  • 2 x Roll All-Driven (top & bottom) Wire Drive system.
  • MIG Adjustable Wire Burnback & Inductance
  • MIG Wire Inch button
  • MIG Gas Purge Button
  • MIG Side door wire installation, side loader
  • MIG Anti de-spooling safety feature
  • MIG Spool Gun Compatible
  • STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
  • STICK Adjustable Hot Start
  • STICK Adjustable Arc Force
  • STICK Anti-Stick
  • Thermal Overload Protection
  • TIG Foot Control Compatible
  • TIG Dial Remote Torch Compatible

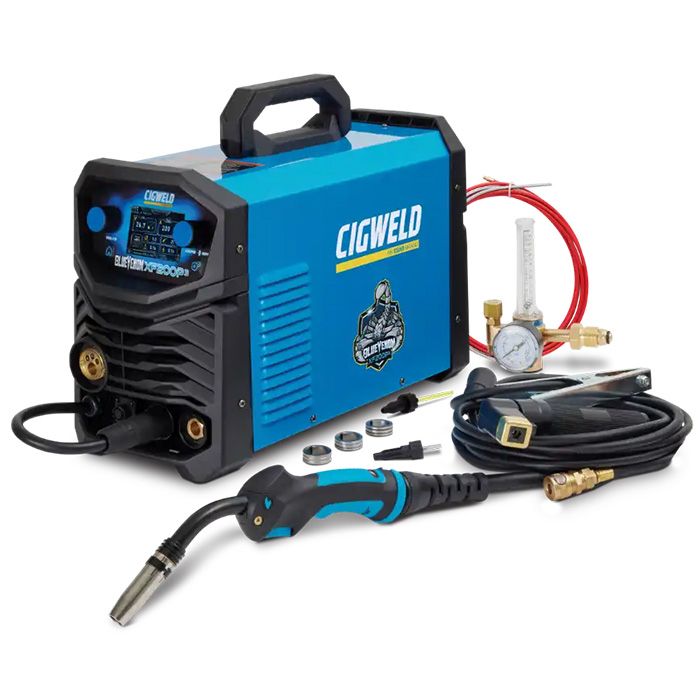

Package Includes:

  1. BlueVENOM XF200P3 Power Source
  2. CMGBZ15E3 MIG Gun 3m- Euro quick connector set up with an Aluminium Liner, plus a spare Steel liner is supplied for hard wires
  3. Work Clamp with 3m Lead
  4. Twist Lock Electrode Holder with 3m Lead
  5. 3 x Feed Rolls: 0.8/0.9mm Gasless, 0.9/1.0mm U-Groove for Soft Wires (Fitted), 0.8/0.9mm Solid Wires.
  6. 2m Argon Gas Hose and Gas Regulator
  7. Includes Yellow Nylon Inlet Guide for use on Soft Alloy Wiresand a Spring Steel Inlet Guide for Hard Wires.

Power Supply (Voltage): Single-Phase 230V/240V +/- 10%
Supply Frequency: 50/60Hz
Supply Lead and Plug supplied: 15 Amp

Amperage Range (MIG): 30 - 200A
Voltage Range (MIG): 15.5 - 24.0V

MIG (GMAW) Duty Cycle @ 40°C: 200 Amps @ 15% | 100 Amps @ 60% | 77 Amps @ 100%
STICK (MMAW) Duty Cycle @ 40°C: 195 Amps @ 10% | 80 Amps @ 60% | 62 Amps @ 100%
TIG (GTAW) Duty Cycle @ 40°C: 200 Amps @ 15% | 100 Amps @ 60% | 77 Amps @ 100%

2- Year Conditional Warranty

Weight of Power Source: 13.4kg
Power Source Dimensions (mm): L: 495 x W: 220 x H: 395
