Stock Code:
FRONTIER580X
Stock Level:
Out of Stock

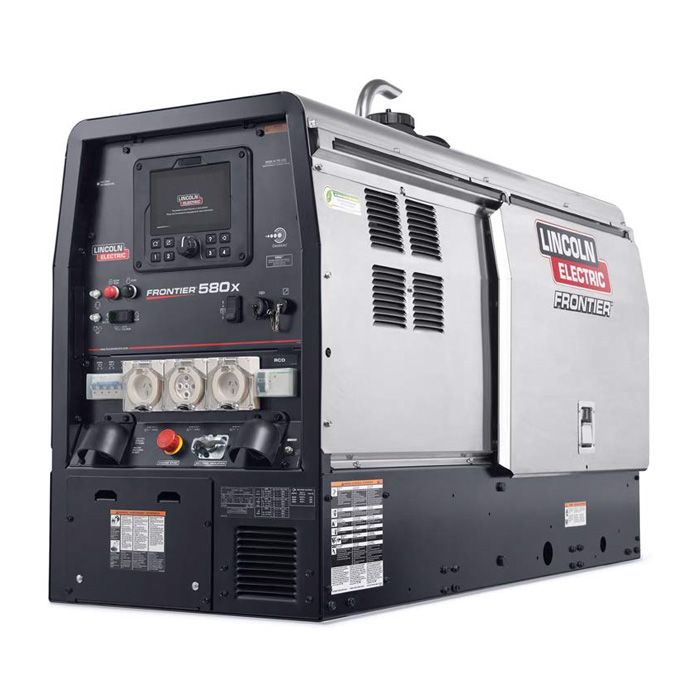

Lincoln Frontier 580X Engine Driven Welder
Price Enquiry
Frontier 580X is the next generation Engine Driven Welder featuring advanced multi-process functionally.
An all-day power 404D-22T Perkins® diesel engine is perfect to work on field.
Processes:
- SMAW (Stick),
- FCAW (Flux-Cored),
- GMAW (MIG),
- GTAW (TIG),
- CAC-A (Arc Gouging),
- DC TIG (GTAW) Lift,
- Scratch and Pulse,
- PIPE (SMAW) and ACTIV8X Pipe.
Features:
- 4 Cylinder 43 Hp, Turbocharged Perkins® diesel engine.
- CrossLinc Technology — enabling precise voltage and amperage control at the arc without the use of an extra control cable.
- Auto Stop/Start - can be set to automatically turn off the engine due to inactivity and then remotely restart it as needed.
- Pipe Mode - specifically for cellulosic root downhill pipe welding — the Pipe Mode produces the iconic, smooth DC Generator arc.
- Memory buttons to save and recall preferred settings.
- High Resolution Display with PIN authorisation options to prevent unintended use and anti-glare screen.
- Maintenance Reminders.
- Removable slide-access door for easy access to the engine and oil drain valve for quick oil changes.
- Reduced leads and less connections.
| Output Range: | Stick / Pipe: 30-580 Amps DC TIG: 5-580 Amps MIG / FCAW: 10-45 Volts Arc Gouging:60-580 Amps |
| Rated Output: | IEC Rating: 500A / 40V / 100% 525A / 36V / 60% Max Rating: 580A / 35V / 40% Desert Rating: @ 55°C 400A / 36V / 100% |
| Engine: | Perkins 404D-22-T(5) Tier 4i Compliant |
| Type of Engine: |
4 Cylinder 43 HP (32 kW) |
| HP & Speed (rpm): | High Idle: 1800 | Low Idle: 1440 |
| Fuel Type: | Diesel |
| Dimensions (mm) H x W x D: | 913 x 643 x 1,524 mm |
| Weight: | 586 kg |
