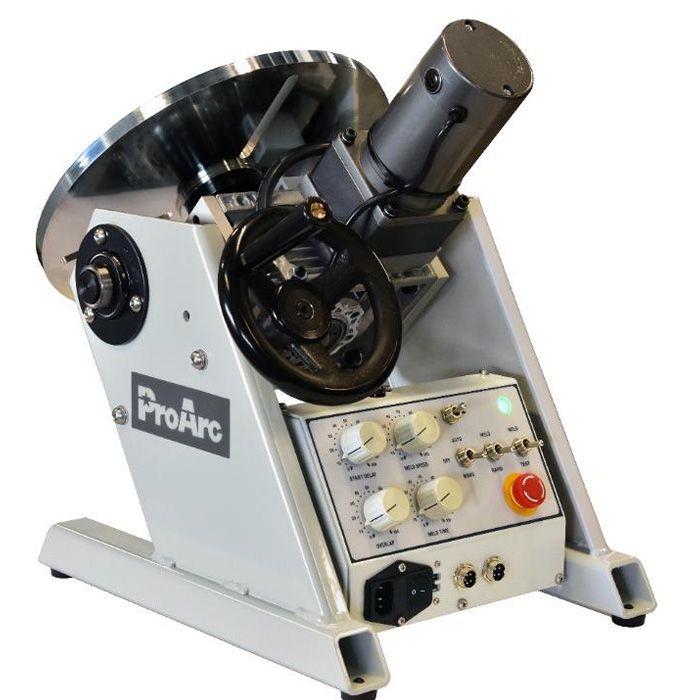

ProArc Positioner/Rotator 200kg

Price:
$3,550.00 (excl.GST)
Price:
$3,550.00 (excl.GST)

Add To Cart

Leave an Enquiry to Order
Leave an Enquiry to Order

An automatic positioner, working in MIG/MAG, CO2 and TIG welding processes.

Features:

  1. Allow steel fabrication shops operator to position the jobs for 'downhand' position in the shortest possible time, without the use of cranes and manpower.
  2. 360° degree rotation, 120° degree tilts.
  3. High frequency protected.
  4. Machined "T" slots table with pilot and through hole.
  5. Free maintenance grounding system.
  6. Standard forward/reverse rotation and variable speed control.
  7. AD type adjustable table height option available.
  8. Tilt mode: Manual

Package Includes:

Includes input lead and footpedal.

Available Extras:

  1. Chuck
    - 3 Jaw 4mm-150mm (PG-150)
    - 3 Jaw 4mm-450mm (PG-450)
  2. Variable speed foot-pedal (VSFC-1K)
  3. Earthing Brush upgrade assembly to 400A (PT-100/200B)

Power Input: 1 Phase, AC 100 ~ 240V, 50/60Hz
Capacity, kg: 200 / 130 (Horizontal / Vertical)
Rated eccentricity, mm:

  • A:180
  • B:90
  • C:60
  • D:10

Table dimension (E), mm: Ø320
Table slot bolt size: M10
Rotation Speed, rpm:

  • A:0.3-4
  • B:0.6-8
  • C:0.8-12
  • D:1-16

Welding timer, sec: 0 ~ 60
Spindle thru hole, mm: Ø22
Earthing, Amp: 200 @ 100%
Tilt range, deg: 0 ~ 120

Overall length (A), mm: 460
Overall width (B), mm: 315
Overall height (C), mm: 340
Center to floor (D), mm: 250
Weight, kg: 42kg
