Gullco Ceramic Backing 1G33. Triangle
# 1G33, KATBAK® CERAMIC WELD BACKING
All 1G33 tiles are suitable for K or X preps where the bevel angles are 45. 60 or 90 degrees.
Suitable for welding with M.1.G.IM.A.G. solid wire, metal cored or flux cored wires.
They are a substitute for round tiles where the benefit of the 1G33 range of tiles is a "full-face" contact with the Joint preparation reducing the risk of burn-through as may occur with the round tiles where you have a single point contact of the tile with the work piece.
Features:
- Impart X-ray Quality Back Beads On Root Pass
- Weld One Side Only
- Deposit More Weld Metal
- Root Weld And Fill In One Pass
- Eliminate Defects And Rework
- Eliminate Costly Unnecessary Gouging And Grinding
- Conveniently Packaged and Sealed In Plastic For Moisture Proof Protection
- Wider Heat Receptive Pressure Sensitive Foil For Improved Adhesion To Work Piece
12 metres per box (40ft)
Specifications:
90 degree bevel angle
A 9/16 in / 14.3 mm
B 5/8 in / 15.9 mm
C 1 in / 25.4 mm
D 40 º
E 55 º
F 85 º
G 1/8 in / 3.2 mm
H 7/64 in 2.8 mm
I 3/32 in / 2.4 mm

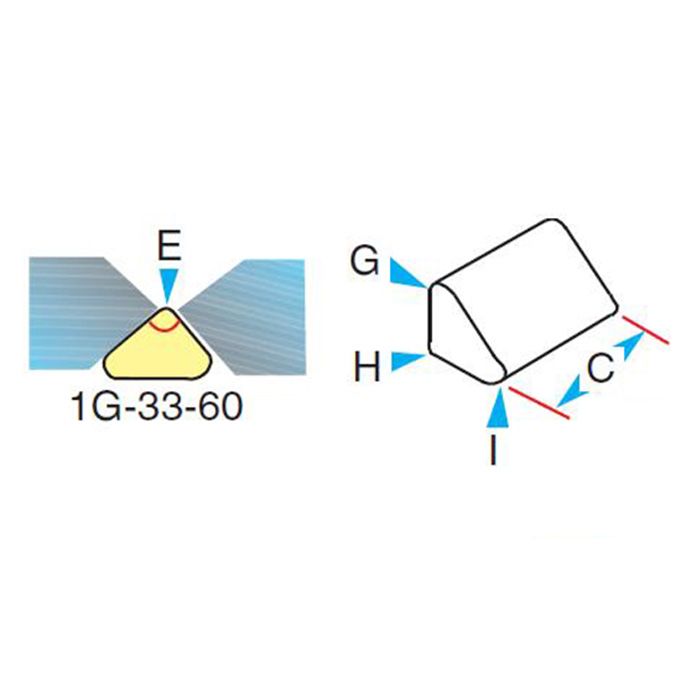

60 degree bevel angle
A 9/16 in / 14.3 mm
B 5/8 in / 15.9 mm
C 1 in 25.4 mm
D 40 º
E 55 º
F 85 º
G 1/8 in / 3.2 mm
H 7/64 in / 2.8 mm
I 3/32 in / 2.4 mm
